Pandrol Fastening Turnouts & Expansion Joints
Can Be Installed Without Track Realignment — Reduces Maintenance Costs and Simplifies Track Work
Key Features
- No lubrication or re-tightening required (maintenance-free)
- Reliable clamping force with simple installation
- Elastic fastening provided with spring clips
- Compact, straightforward component structure
- Easy to install and remove; allowing smooth assembly and disassembly
- High safety and proven reliability
- Achieves long service life
Overview

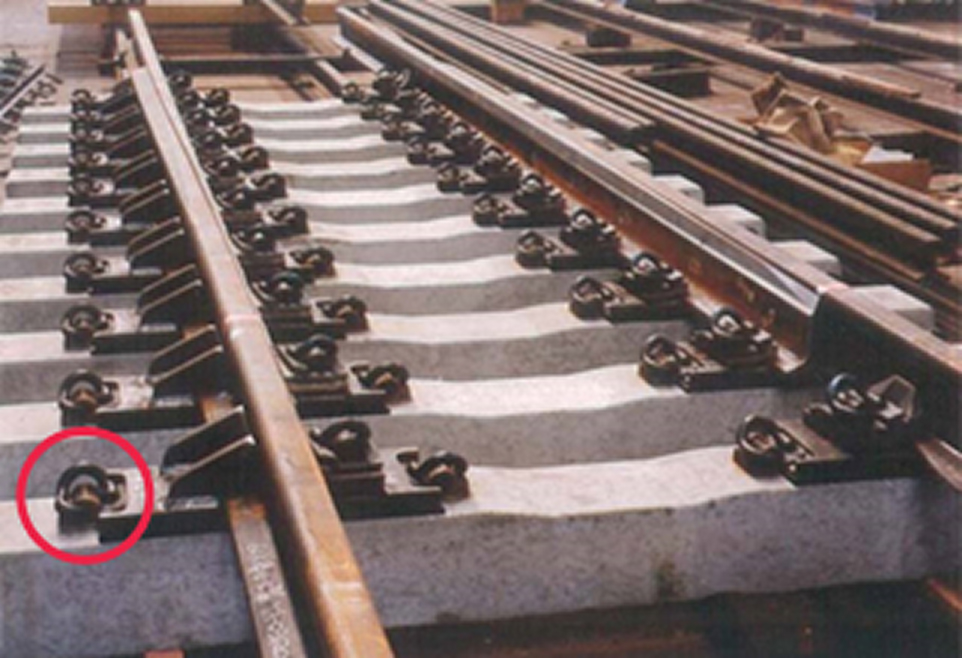

Pandrol Fastening Turnouts
- Fully compatible with existing track geometry and rail structures
- Conversion to Pandrol fastening is possible by replacing the bearers and tie plates
- Elastic fastening structure helps absorb impacts on the track
- Suppresses rail creeping
- Fewer components reduce installation and maintenance costs

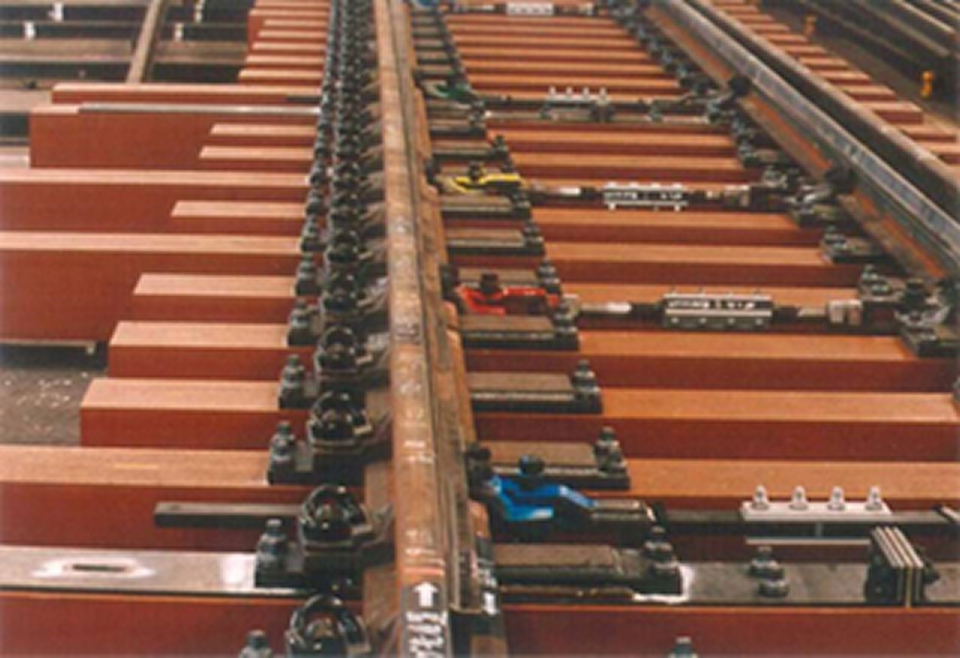

Pandrol- Fastening Expansion Joint
- Fully compatible with existing track geometry and rail structures
- Pandrol fastening is applied between the bearer, rail, between the PC sleeper, and bearer

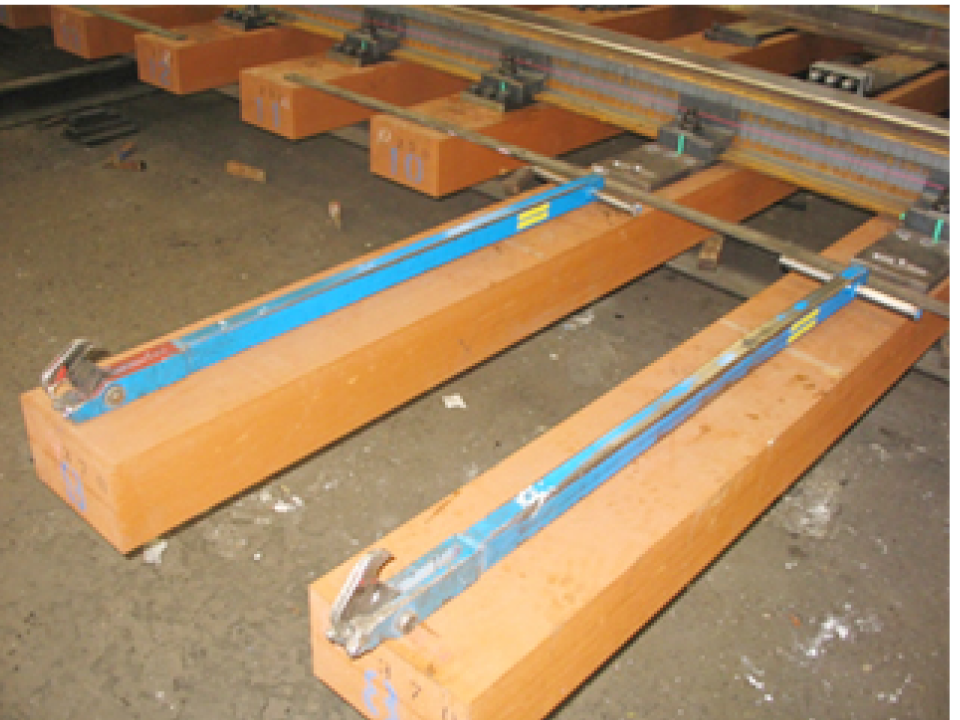

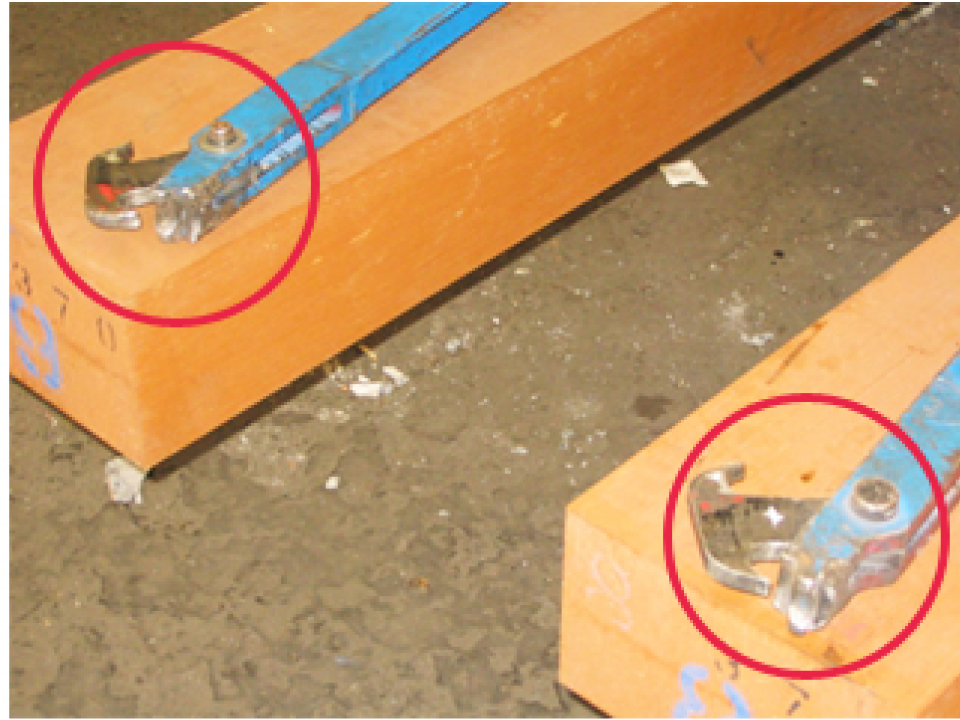

Installation/Removal
Related Patents
- Rail Fastening Device (Utility Model No. 2131867)
- Spring Seat for Rail Fastening Device (Utility Model No. 2131868)
- Retaining Fitting for Spring Clip Used in Elastic Rail Fastening (Utility Model No. 2596394)
