Derailment Prevention Guard for Shinkansen

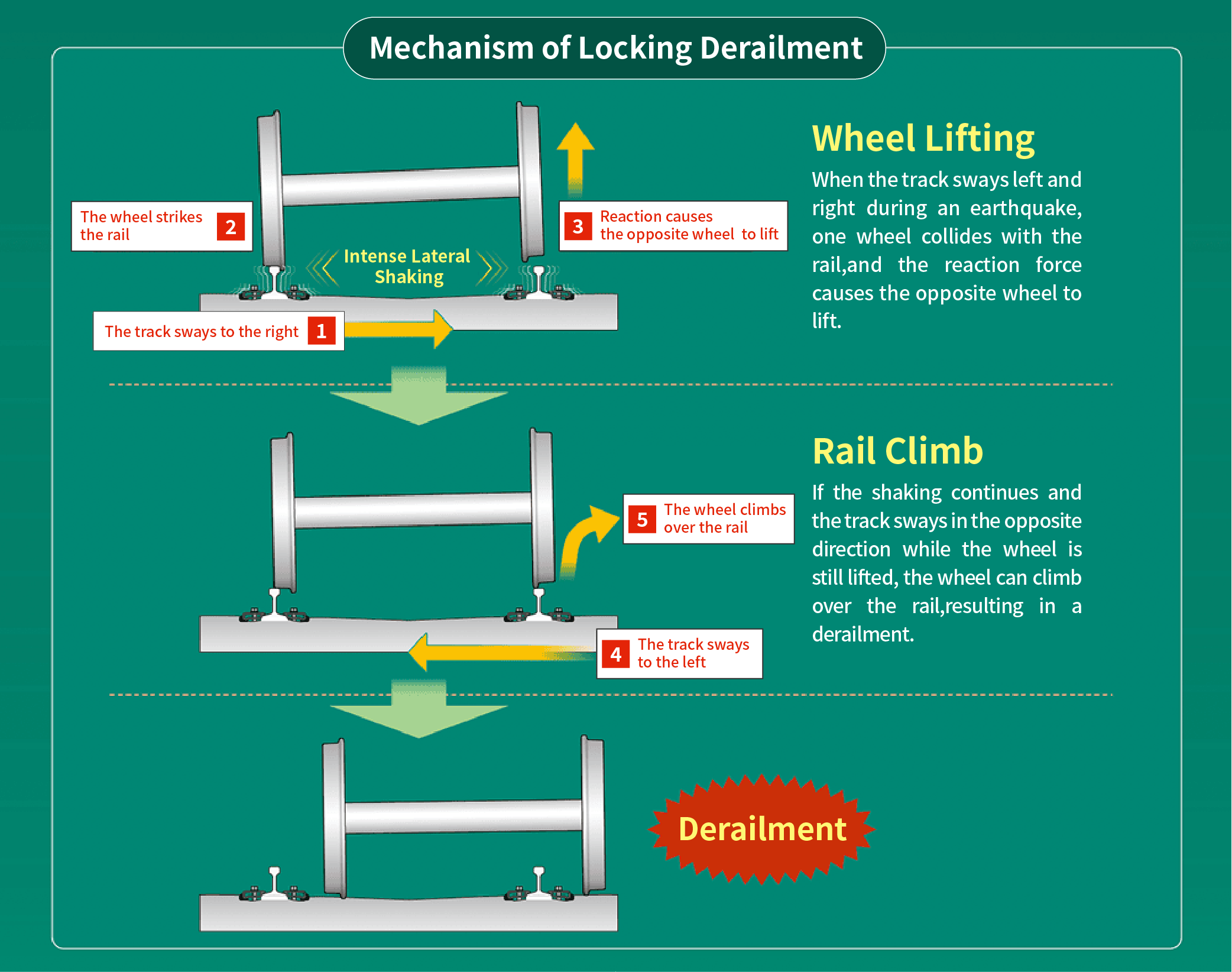

Effective Against Rocking Derailment During Earthquakes

Key Features

1. Minimizes damage by preventing collisions with oncoming trains or structures during major earthquakes.

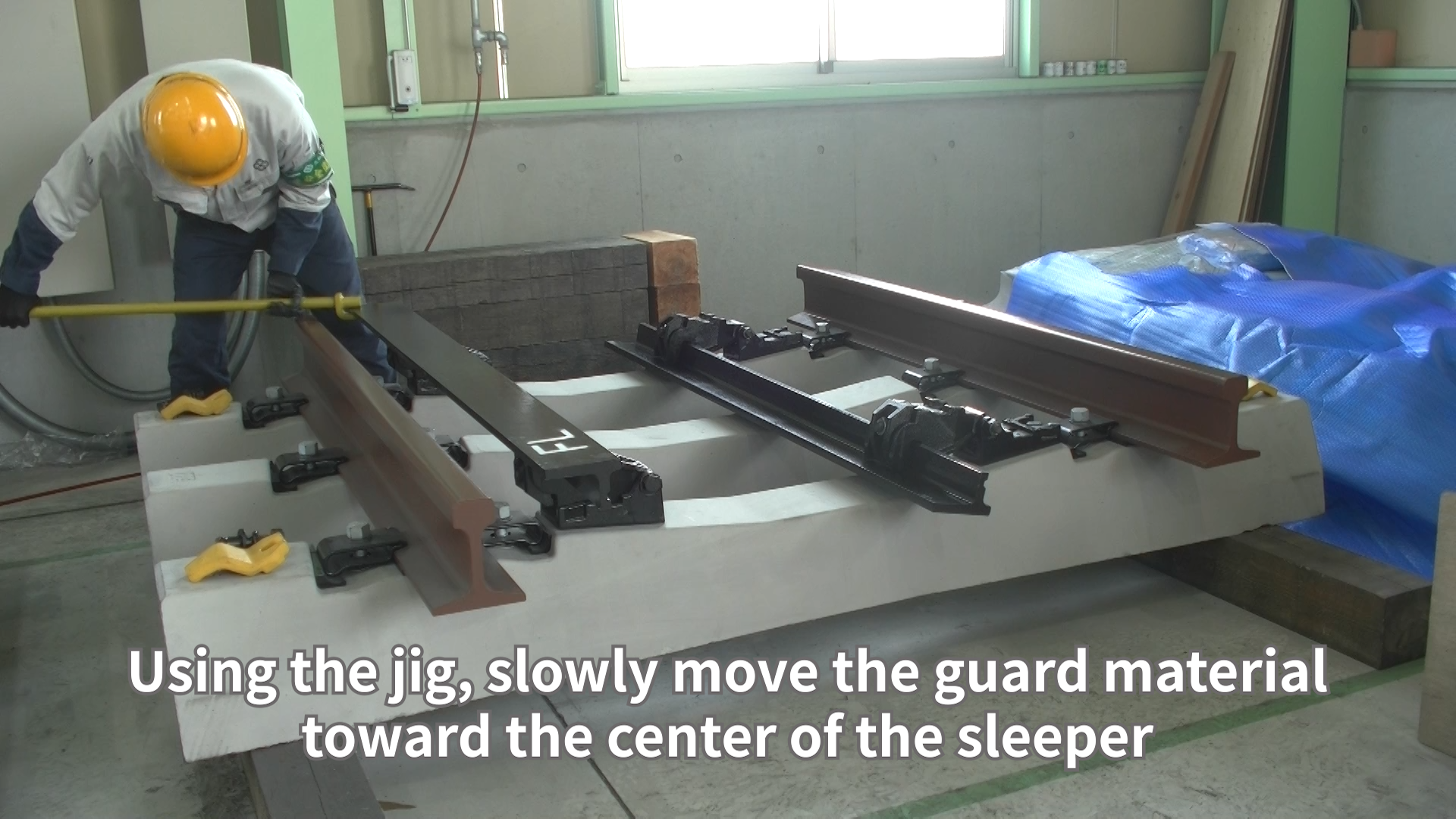

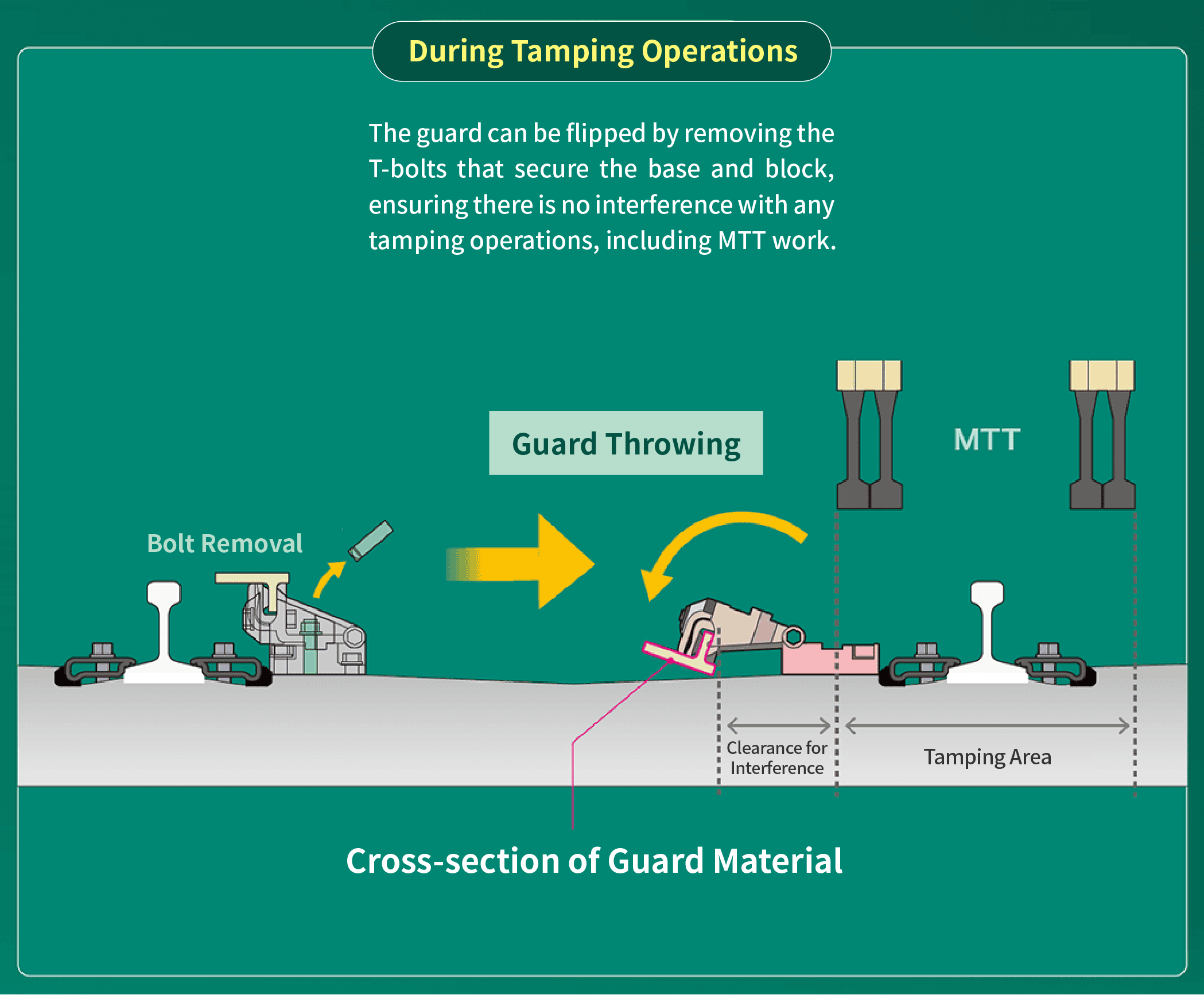

2. The guard is switchable and does not interfere with the tamping area.

Structure

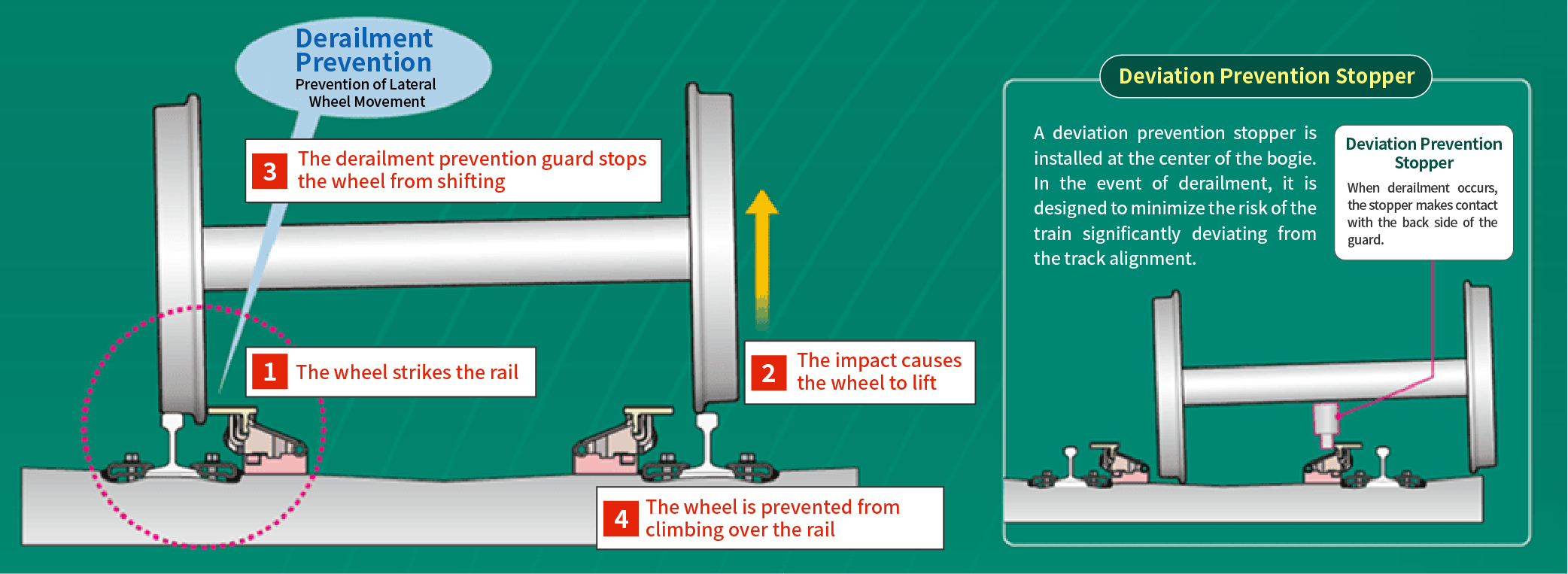

When one wheel strikes the rail and causes the opposite wheel to lift, the guard holds the contacting wheel in place, preventing it from shifting. This, in turn, helps prevent the opposite wheel from climbing over the rail and derailing. In the event of a derailment, a deviation prevention stopper mounted on the bogie limits lateral displacement and prevent the train from leaving the track structure.
