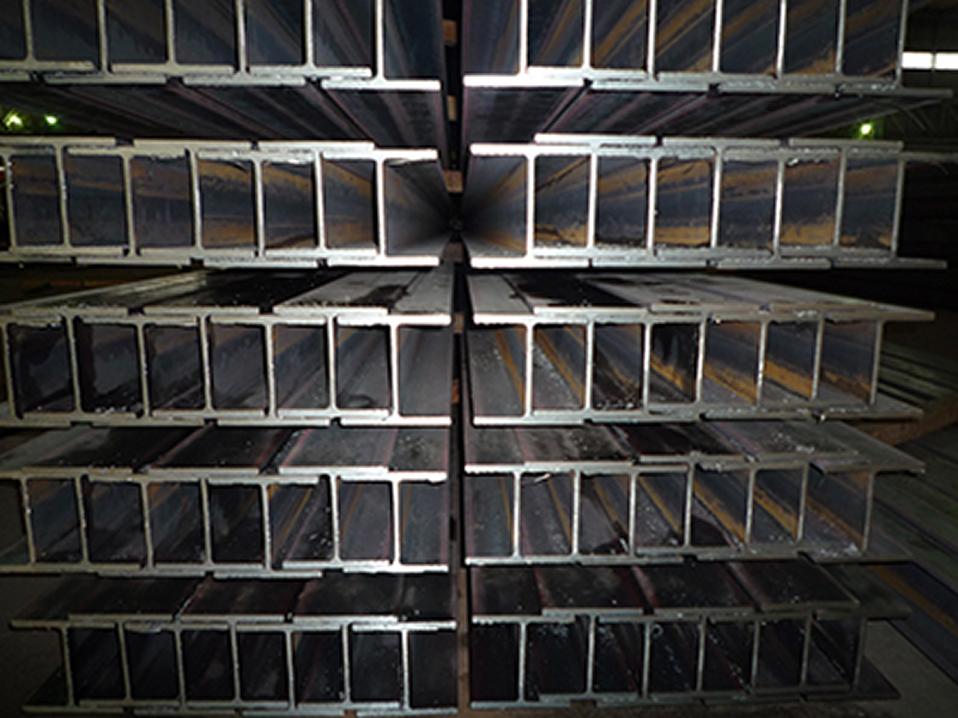

High-Spec H-Beams
Engineered to exceed JIS standards, our High-Spec H-Beams offer superior chemical composition and mechanical performance.
Shape/Dimensions Specifications
| Standard Number | Type of Symbols | Chemical Composition Unit: (%) | Unit: (%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification Code |
C (max.) |
Si (max.) |
Mn |
P (max.) |
S (max.) |
Cu (max.) |
Cr※6 (max.) |
Sn (max.) |
Ceq | Pcm | |
| JIS G 3101 | SS400 | - | - | - | 0.050 | 0.050 | - | - | - | - | - |
| YHS-SS400 | 0.20 | 0.35 | Below 0.80 | 0.030 | 0.015 | 0.40 | 0.25 | 0.040 | Below 0.36 | - | |
| JIS G 3136 | SN400B | 0.20 | 0.35 | 0.60～1.50 | 0.030 | 0.015 | - | - | - | Below 0.36 | (Below 0.26) ※4 |
| YHS-SN400B | 0.20 | 0.35 | 0.60～1.40 | 0.030 | 0.015 | 0.40 | 0.25 | 0.040 | Below 0.36 | Below 0.26 | |
| JIS G 3106 | SM490A | 0.20 | 0.55 | Below 1.65 | 0.035 | 0.035 | - | - | - | - | - |
| YHS-SM490A | 0.18 | 0.40 | Below 1.50 | 0.030 | 0.013 | 0.40 | 0.25 | 0.035 | Below 0.44 | Below 0.29 | |
| JIS G 3136 | SN490B | 0.18 | 0.55 | Below 1.65 | 0.030 | 0.015 | - | - | - | Below 0.44 | (Below 0.29) ※4 |
| YHS-SN490B | 0.18 | 0.40 | Below 1.50 | 0.030 | 0.013 | 0.40 | 0.25 | 0.035 | Below 0.44 | Below 0.29 | |
| Standard Number | Type of Symbols | Mechanical Properties |
Shape/ Dimensional Standards |
Internal Properties | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specification Code |
Yield Point※1 （N/mm²） |
Tensile Strength |
Yield Ratio ※2 |
Elongation (％) |
Impact Value （0℃） ※3 |
|||||
|
Steel Thickness （mm） |
（N/mm2） | (N/mm2) | (％) |
Steel Thickness （mm） |
(％) | （J） | ||||
| JIS G 3101 | SS400 | t≦16 | Above 245 | 400～510 | - | 5＜t≦16 | Above 17 | - | JIS G 3192 | |
| 16＜t≦40 | Above 235 | 16＜t≦50 | Above 21 | |||||||
| YHS-SS400 | 245～355 | 400～510 | - | Above 21 | Above 27 | |||||
| JIS G 3136 | SN400B | 6≦t＜12 | Above 235 | 400～510 | Below 80 | 6≦t≦16 | Above 18 | Above 27 | JIS G 3136 | |
| 12≦t≦40 | 235～355 | 16＜t≦50 | Above 22 | |||||||
| YHS-SN400B | 235～355 | 400～510 | Below 80 | Above 22 | Above 70 | ※5 | ||||
| JIS G 3106 | SM490A | t≦16 | Above 325 | 490～610 | - | 5＜t≦16 | Above 17 | - | JIS G 3192 | |
| 16＜t≦40 | Above 315 | 16＜t≦50 | Above 21 | |||||||
| YHS-SM490A | 325～445 | 490～610 | Below 80 | Above 21 | Above 70 | ※5 | ||||
| JIS G 3136 | SN490B | 6≦t＜12 | Above 325 | 490～610 | Below 80 | 6≦t≦16 | Above 17 | Above 27 | JIS G 3136 | |
| 12≦t≦40 | 325～445 | 16＜t≦50 | Above 21 | |||||||
| YHS-SN490B | 325～445 | 490～610 | Below 80 | Above 21 | Above 100 | ※5 | ||||
Carbon Equivalent:(Ceq) (%) = C + Mn/6 + Si/24 + Ni/40 + Cr/5 + Mo/4 + V/14
Weld Crack Sensitivity Composition (Pcm) (%):Pcm = C + Si/30 + Mn/20 + Cu/20 + Ni/60 + Cr/20 + Mo/15 + V/10 +
5B
- The upper limit does not apply when the web thickness is 9 mm or less.
- It applies to flange thicknesses between 12 mm and 100 mm. The upper limit is set at 85% for web thicknesses of 9 mm or less.
- Impact values do not apply to thicknesses of 12 mm or less.
- Ceq or Pcm shall be applied based on agreement between the contracting parties.
- Ultrasonic testing shall be conducted upon consultation between the contracting parties. The acceptance criteria shall be equivalent to Grade Y as specified in JIS G 0901.
- The Cr content requirement applies to products manufactured on or after October 1, 2011.
