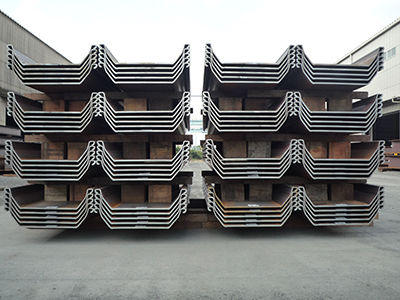

Steel Sheet Piles
Rolled steel used for creating partition walls for retaining earth or water with watertight joints on both edges.
Shape/Dimensions
| Type | Dimensions | ||
|---|---|---|---|
| Effective width/w(mm) | Effective height/h(mm) | Thickness/t(mm) | |
| YASP-Ⅱ | 400 | 100 | 10.5 |
| YASP-Ⅲ | 400 | 125 | 13.0 |
| YASP-Ⅳ | 400 | 170 | 15.5 |
| YASP-ⅢA | 400 | 150 | 13.1 |
| YASP-ⅡW | 600 | 130 | 10.3 |
| YASP-ⅢW | 600 | 180 | 13.4 |
| Type | Per sheet pile | |||
|---|---|---|---|---|
| Cross-sectional area(cm2) |
Second moment of area(cm4) |
Section modulus (cm3) |
Unit mass (kg/m) |
|
| YASP-Ⅱ | 61.18 | 1,240 | 152 | 48.0 |
| YASP-Ⅲ | 76.42 | 2,220 | 223 | 60.0 |
| YASP-Ⅳ | 96.99 | 4,670 | 362 | 76.1 |
| YASP-ⅢA | 74.40 | 2,790 | 250 | 58.4 |
| YASP-ⅡW | 78.70 | 2,110 | 203 | 61.8 |
| YASP-ⅢW | 103.90 | 5,220 | 376 | 81.6 |
| Type | Per meter of wall width | |||
|---|---|---|---|---|
| Cross-sectional area(cm2/m) |
Second moment of area(cm4/m) |
Section modulus(cm3/m) |
Unit mass (kg/m2) |
|
| YASP-Ⅱ | 153.0 | 8,740 | 874 | 120 |
| YASP-Ⅲ | 191.0 | 16,800 | 1,340 | 150 |
| YASP-Ⅳ | 242.5 | 38,600 | 2,270 | 190 |
| YASP-ⅢA | 186.0 | 22,800 | 1,520 | 146 |
| YASP-ⅡW | 131.2 | 13,000 | 1,000 | 103 |
| YASP-ⅢW | 173.2 | 32,400 | 1,800 | 136 |
